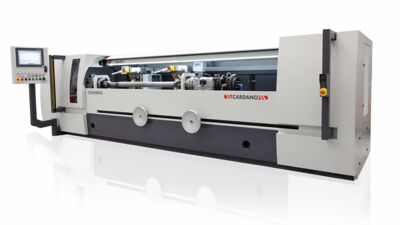

Balancing machine for medium and heavy duty drive shafts (150kg) Cardano - Schenck Magyarország

  • Compact design
  • Minimum space requirement
  • Ergonomic operating concept
  • High level of productivity due to short change-over times
  • Extremely high measuring accuracy
  • State-of-the-art welding technology
  • Fast and easy set-up of machine

Design

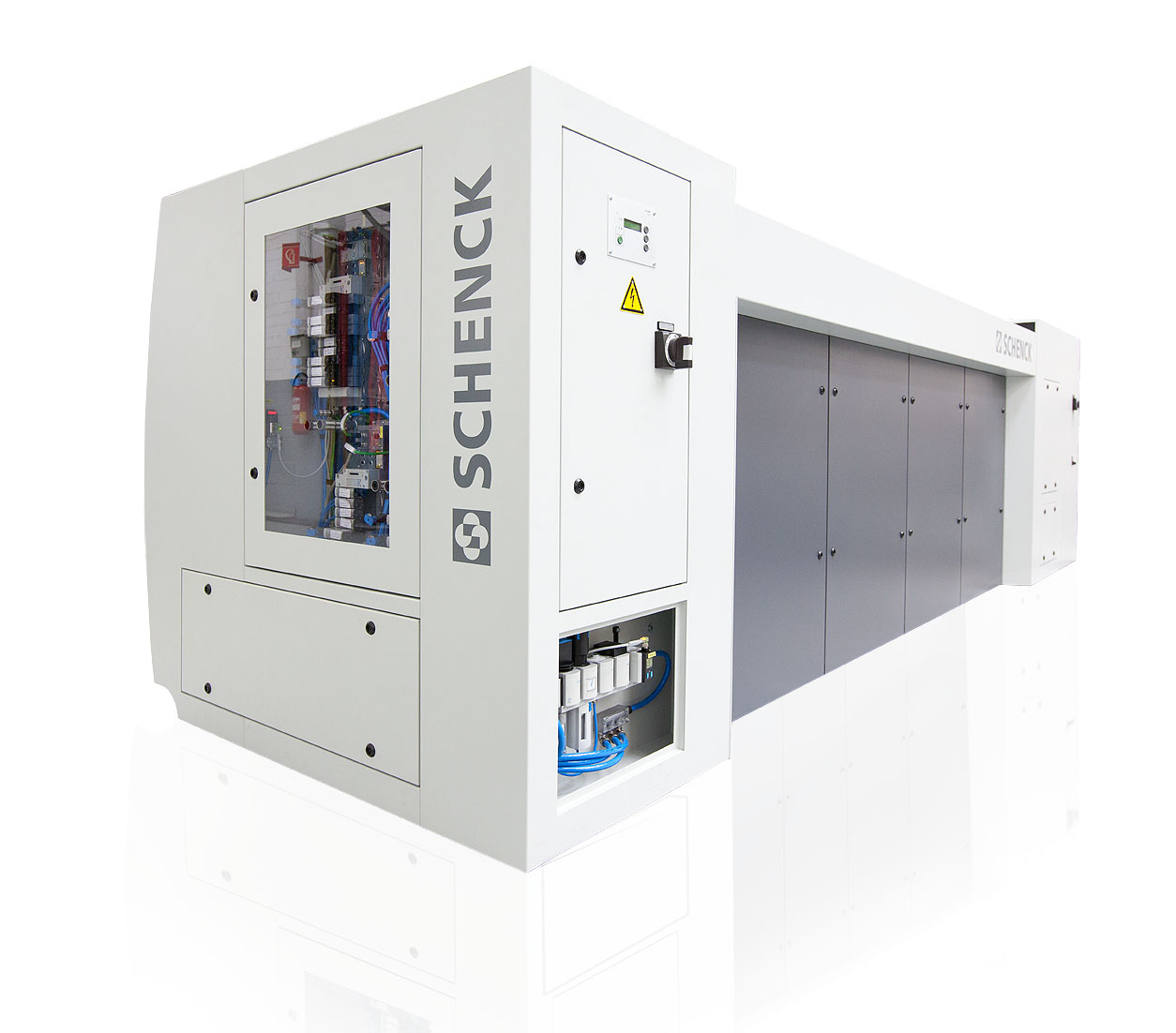

  • Machine bed with integrated control cabinets and safety housing
  • Fixed left-hand pedestal with integrated servo-drive unit for balancing spindle
  • Right-hand pedestal, manually positioned

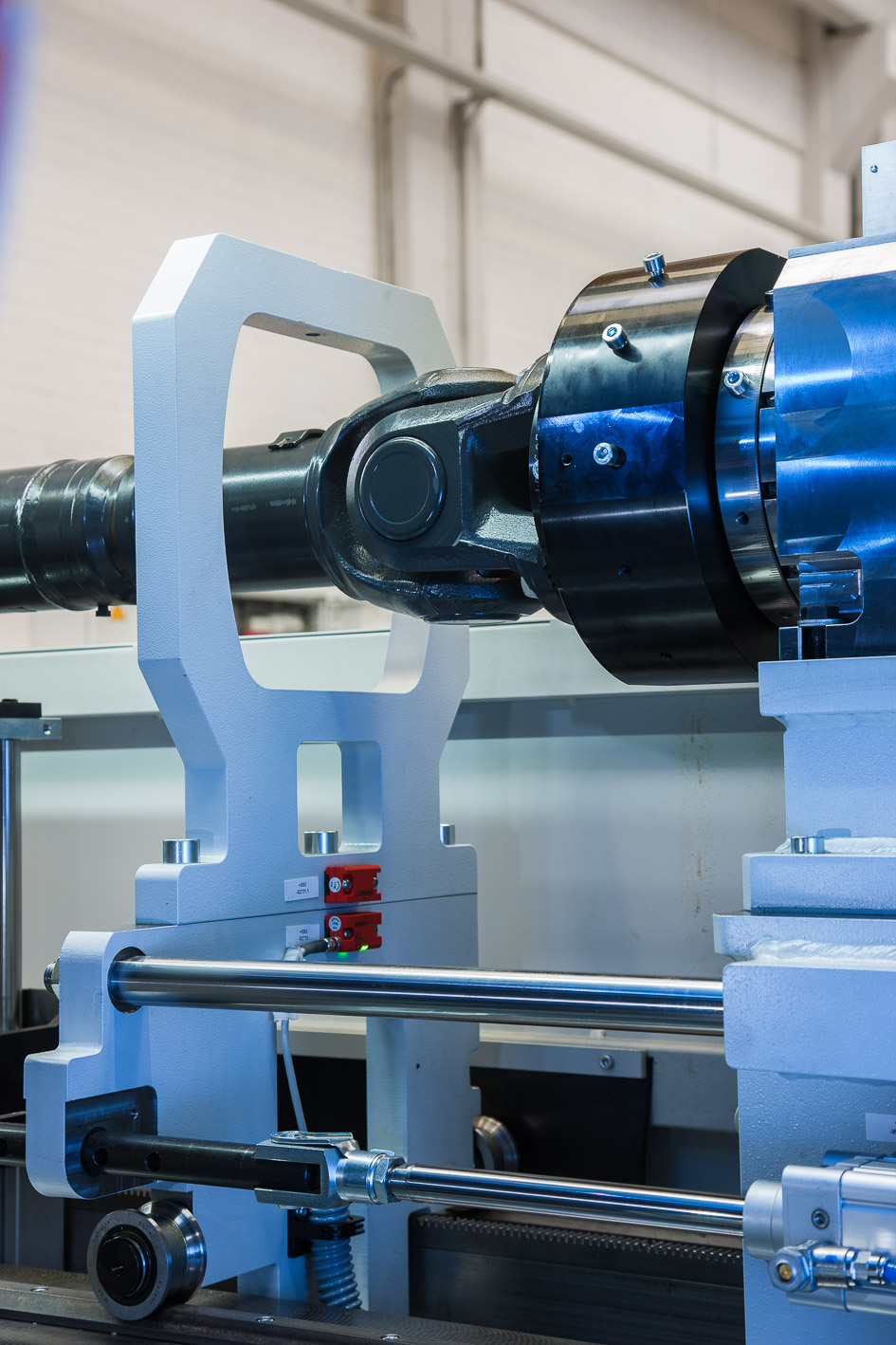

  • Integrated safety catches and part rests for comfortable drive shaft loading

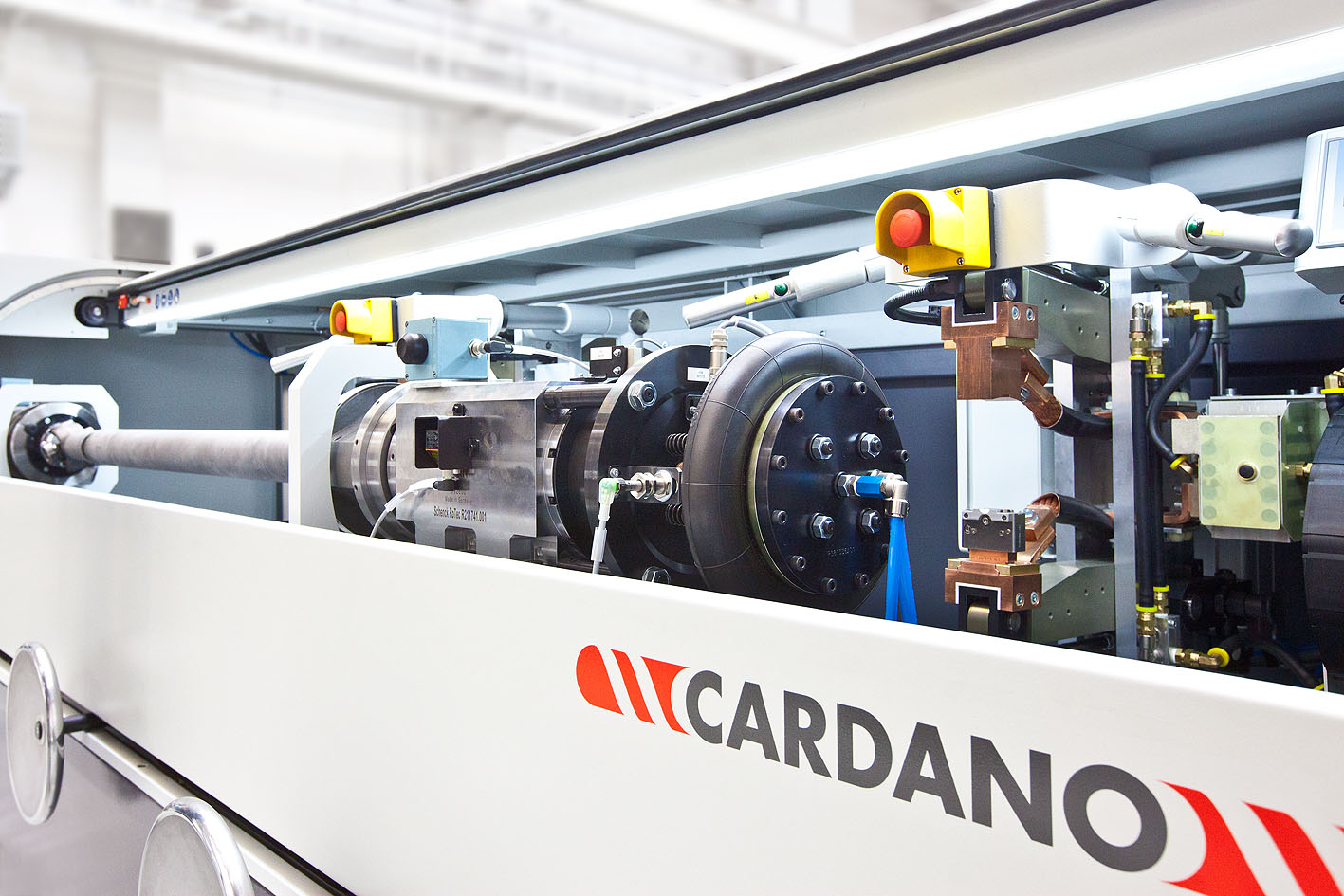

  • Manuel weld guns, position-monitored

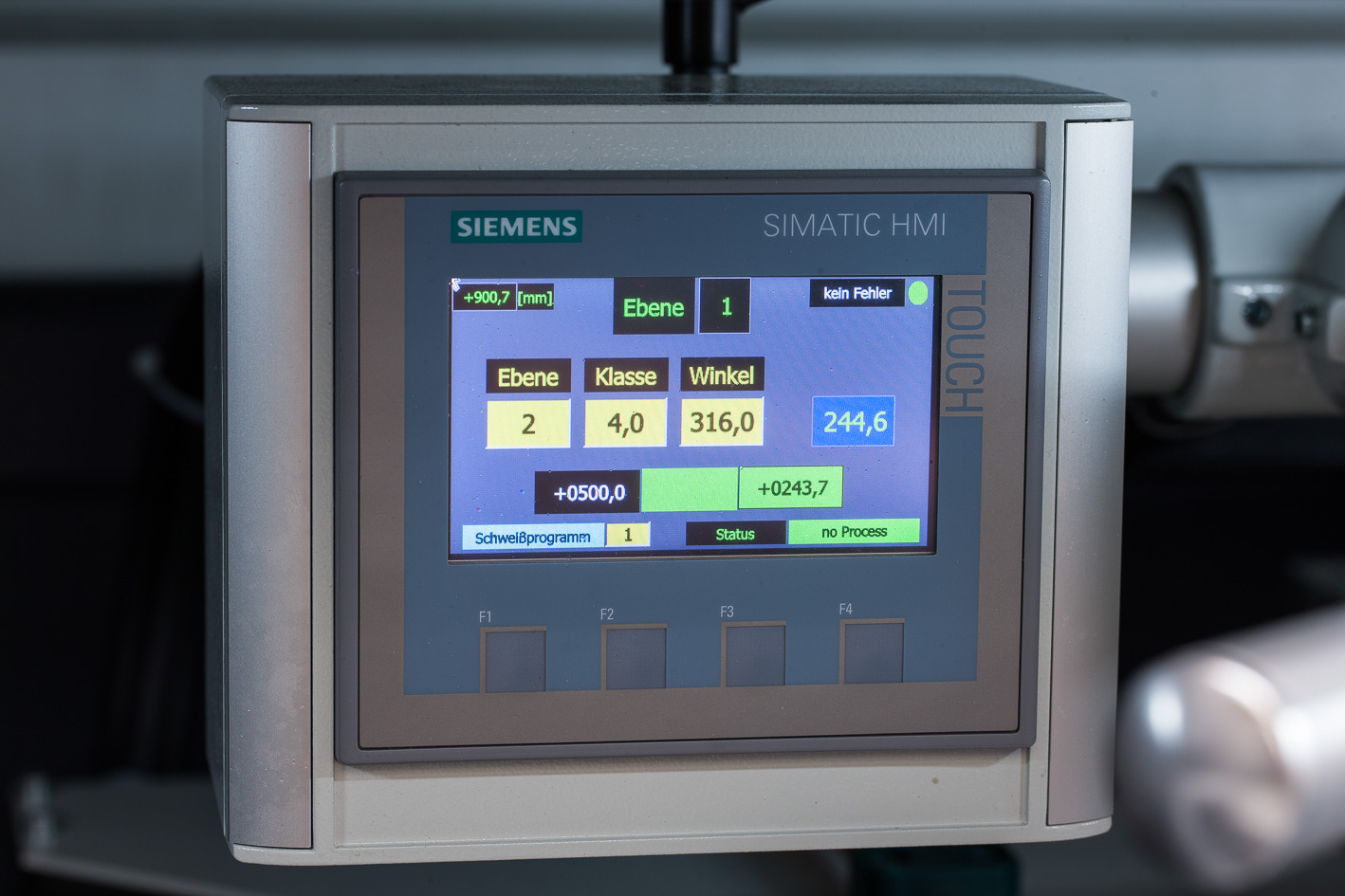

  • State-of-the-art measuring and control device CAB950 with intuitive operating concept
